Place of Origin: | China |
Hàng hiệu: | MAXPOWER |
Chứng nhận: | CE,ROHS, UL,REACH,KS |
Model Number: | D-C2500mAh |
Minimum Order Quantity: | Negotiable |
---|---|
Giá bán: | Negotiable |
Packaging Details: | Cartons |
Delivery Time: | 20-30 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 1, 000, 000PCS |
Điểm nổi bật: | emergency exit light battery,emergency lighting battery packs |
---|

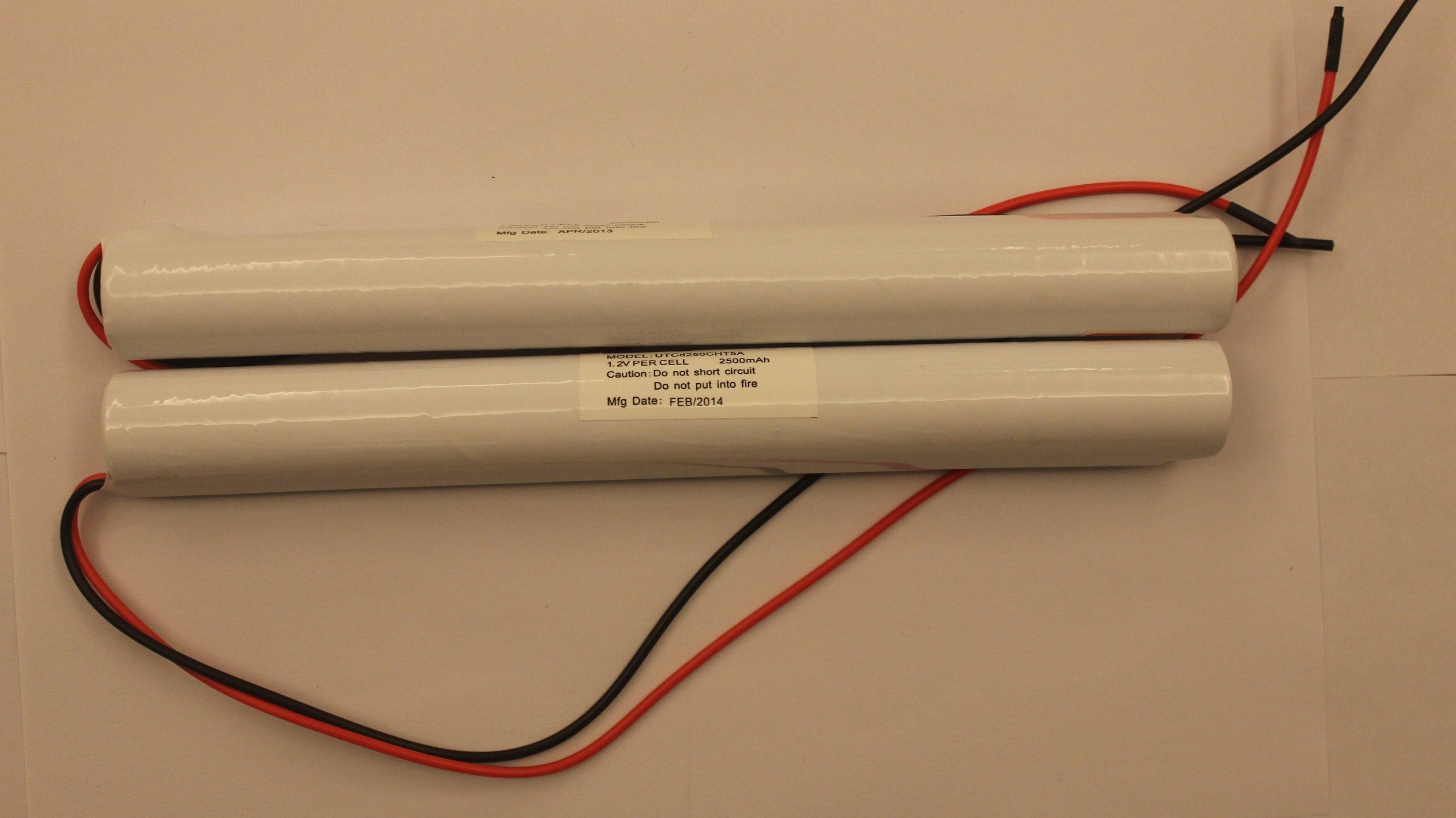

3.6V Ni-Cd Emergency Lighting Battery 2500MAH UL For Fixture
Quick Detail:
1 Nominal voltage: 1.2V
2 Nominal capacity: 2500mAh
3 Typical weight: 70g
4 Standard charge: 250mA×15hours
5 Standard discharge: 500mA to 1.0V
6. Tickle charge: 135~281mA
7 Discharge cut-off voltage: 1.0V
8 Teerature range for operation: (Humidity: Max.85%)
Standard charge: 0~+70℃
Trickle charge: 0~+70℃
Discharge: -20~+70℃
9 Teerature range for storage: (Humidity: Max. 85%)
Within 1 years: -20~+25℃
Within 6 months: -20~+30℃
Within a months: -20~+40℃
Within a week: -20~+50℃
10. Appearance:
There shall be no such defect as discoloration or electrolyte leakage or zero voltage
Description:
Emergency lighting , Emergency fixture , outdoor lighting, public lighting, LED lighting,annunciator,solar light ,emergency lighting units (exit signs, emergency lighting fixtures, conversion kits) UPS &a;back-up systems ,Security devices (alarms, cable networks,)
Specifications:
MAXPOWER INDUSTRIAL CO.LTD -NiCd 1.2V 2500mAh battery specification |
|
Model |
D-C2500mAh 1.2V |
Dimension |
25.5*49mm (Diameter*Height) |
Voltage |
1.2V |
Capacity |
2500mAh |
Iedance |
<20 mΩ |
Discharge cut-off voltage |
1.0V |
Maximum Charge voltage |
1.4V |
Standard charge current |
0.1C for 16 hours |
Standard discharge current |
0.2C |
Weight |
<70g |
Working teerature |
Charge:0-70 degree |
Discharge:-20-70 degree |
|
Storage teerature |
minus 20 - 70 degree |
Normal teerature capacity |
2500mAh |
Cycle life |
500-1000 cycles |
Coetitive Advantage:
1.Long time quality guarantee
We ensure the Super good quality with 4 years guarantee
Since the date of delivery from our factory
2.A wide range of teerature adaptation(-5~70°C)
MaxPower NICAD battery Under 55℃ condition, the battery can be charged by two different charge methods, such as using 0.05C charge 24 hours and 0.1C charge 16 hours. The capacity can reach more than 90% and the battery can be widely used in security and emergency lighting field.
3. Excellent lifetime at high teerature
MAXPOWER NI-CD high teerature battery can keep more than 75% capacity after 4 years under -5-55 degree teerature, MAXPOWER high teerature battery can meet ICEL1010,EN60598-2-22 and IEC61951 international standards. The high class technology of long lifetime NI-CD high teerature battery which can still keep more than 75% capacity after 6 years under -5-55 degree teerature
Communication with customers
A: What are the advantages of using rechargeable NICAD batteries?
B: Performance - NiCad batteries can be more than three times longer lasting
than alkaline batteries under high teerature conditions.
Savings - They can be recharged for up to 1000 cycles, giving you tremendous
savings in the long run.
A: what is the cycle life for the NICAD batteries?
B: Cycle life is the number of charge and discharge cycles a battery can achieve
Before the discharged capacity drops to end of life, NIMH battery cycle life can reach 500 cycles
A: What is the post-sales service?
B: We provide 4 years quality warrantee after delivery and 0.1% spare parts.
A: How do you deliver the battery?
B: We can do sea or air shipment for the NICAD battery with authorized MSDS and Guarantee Letter. They are usually 30% pre-recharged before shipment.
